SELF DRILLING ANCHOR

Self-drilling hollow bar anchor systems for geotechnical applications.

OVERVIEW

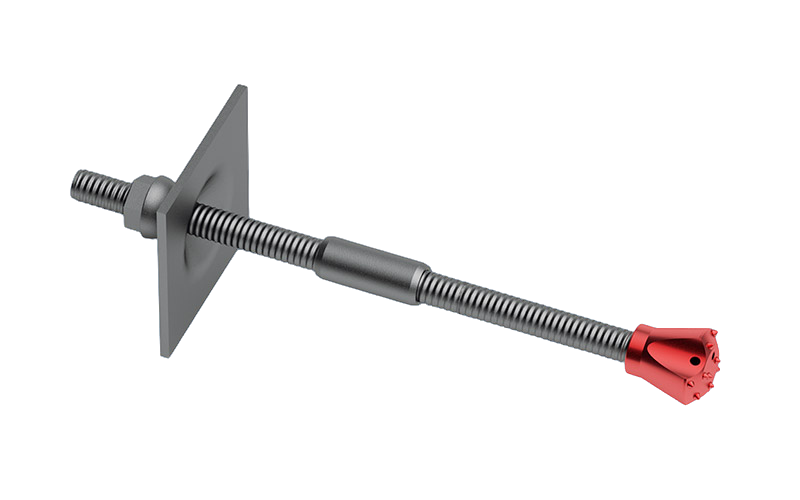

The self-drilling anchor system is a fully threaded hollow core bar that initially serves as a drill rod with a sacrificial bit, and once grouted in place, becomes a permanent anchor tendon that can be stressed and locked off with a nut. This single-operation system — drilling, installation, and grouting combined — delivers optimal solutions for soil nailing, rock bolting, micro piling, and ground anchoring in difficult ground and rock conditions.

Key Properties

Steel Grade: 40 Cr (or S460NH available on request)
Thread: R-type (left-hand), per internal standard based on ISO 10208 and 1720
Hardness: 230–300 HB
Elongation %: ≥ 6
Delivery Lengths: 3 m (custom lengths on request)

TECHNICAL DATA

Nominal Diameter (mm)

Parameter	R32S	R38N
Nominal Outer Diameter (mm)	32	38
Nominal Inner Diameter (mm)	17	22
Ultimate Load (kN) ≥	360	500
Yield Load (kN) ≥	280	400
Elongation A5 (%) ≥	6.00	6.00
Nominal Weight (kg/m)	3.40	4.70

6 PRODUCTS

SELF DRILLING ANCHOR RANGE

self drilling anchor

R THREAD HOLLOW BAR (STANDARD)

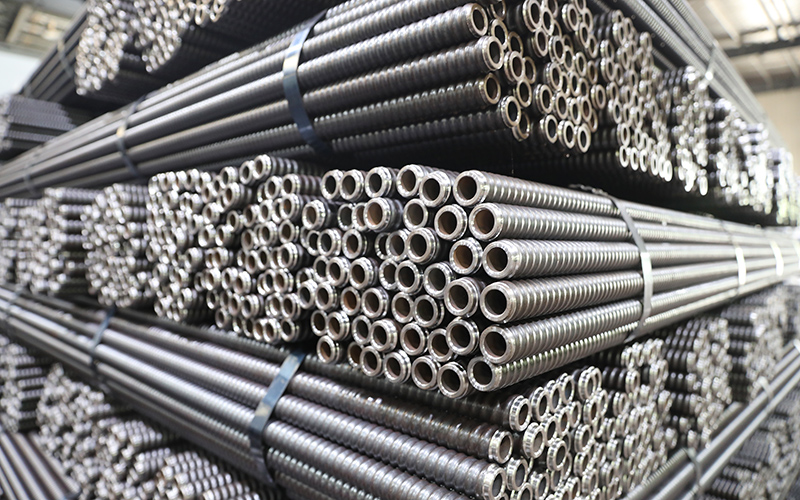

R thread self-drilling anchor bolt system comprising hollow bar, anchor nut, plate, coupler, drill bit, and centralizer. Available in R32S and R38N sizes. Drilling, installation, and grouting are performed in a single operation — an economic alternative to cased drilling with simple systems, low personnel requirements, and flexible length adjustment via couplers.

View Details

self drilling anchor

TDG HOLLOW BAR (GALVANISED)

Thermal Diffusion Galvanised (TDG) hollow bar, produced using a zinc sublimation reaction, to coat steel as an alternative to hot dip galvanising. Creating a surface protection process that forms a zinc-iron alloy layer through metallurgical bonding. Available in R32S and R38N sizes. The coating provides exceptional corrosion resistance, thread performance, wear resistance, and scratch resistance without affecting mechanical properties. Compliant with SANS 53811 and ISO 17668

View Details

self drilling anchor

NUTS

Hex nuts with internal threads that transfer the anchoring force of the hollow bar to the bearing plate. Machined with curved, flat, or spherical end profiles for optimal load distribution.

View Details

self drilling anchor

BEARING PLATES

Flat and spherical bearing plates that evenly transfer stress from the anchor rod to the surrounding rock or soil. Customisable sizes for varied ground conditions and load requirements.

View Details

self drilling anchor

COUPLERS

Internal-threaded couplers with a central termination position, matched to the hollow bar thread profile. Equal strength to the bar, enabling flexible length extension during drilling.

View Details

self drilling anchor

CENTRALISERS

Precision-engineered centralisers that maintain uniform bar positioning within the borehole, ensuring consistent grout cover and optimal load transfer across the full anchor length.

View Details
